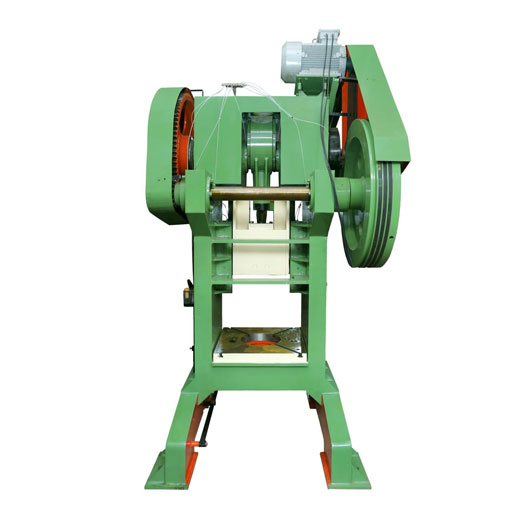

Our team of highly qualified & experienced workforce helps us in manufacturing and exporting H-Type Power Press Machine. This machine is designed for drawing, forming and blanking operation. To manufacture this machine we use optimum quality mild steel and cast iron. The table and slide of this machine are perfectly aligned, to each other to obtain high accuracy and precision press operation. H-Type Power Press Machine has a rotating flywheel which acts like a storehouse of energy.
| Model | 30 Ton | 50 Ton | 75 Ton | 100 Ton | 150 Ton | 200 Ton | ||||||
| mm | inch | mm | inch | mm | inch | mm | inch | mm | inch | mm | inch | |
| Bed Size | 410 X 460 | 16 X 18 | 460 X 510 | 18 X 20 | 522 X 575 | 20 X 22 | 609 X 660 | 24 X 26 | 660 X 771 | 26 X 28 | 765 X 820 | 30 X 32 |
| Bed To Ram | 330 | 13 | 381 | 15 | 406 | 16 | 455 | 18 | 483 | 19 | 533 | 21 |
| Stroke Length | 83 | 3 1/4 | 95 | 3 3/4 | 110 | 4 1/4 | 115 | 4 1/2 | 127 | 5 | 140 | 5 1/2 |
| Crank Shaft Dia | 100 | 4 | 120 | 4 3/4 | 135 | 5 1/4 | 152 | 6 | 185 | 7 1/4 | 204 | 8 |
| Gear Dia | 609 | 24 | 711 | 28 | 813 | 32 | 863 | 34 | 1070 | 42 | 1220 | 48 |
| Fly Wheel Dia | 660 | 26 | 812 | 32 | 914 | 36 | 990 | 39 | 1070 | 42 | 1270 | 50 |
| Hole in Ram for Clamping | 32 | 1 1/4 | 39 | 1 1/2 | 45 | 1 3/4 | 52 | 2 | 58 | 2 1/4 | 56 | 2 1/4 |
| No. of Strokes / Min | 45 | 45 | 45 | 45 | 40 | 40 | 40 | 40 | 30 | 30 | 30 | 30 |
| Motor R.P.M | 1440 | 1440 | 1440 | 1440 | 1440 | 1440 | 1440 | 1440 | 1440 | 1440 | 1440 | 1440 |
| Power Requirement in H.P | 3 | 3 | 5 | 7.5 | 7.5 | 10 | 10 | 15 | 15 | 15 | 15 | 15 |
