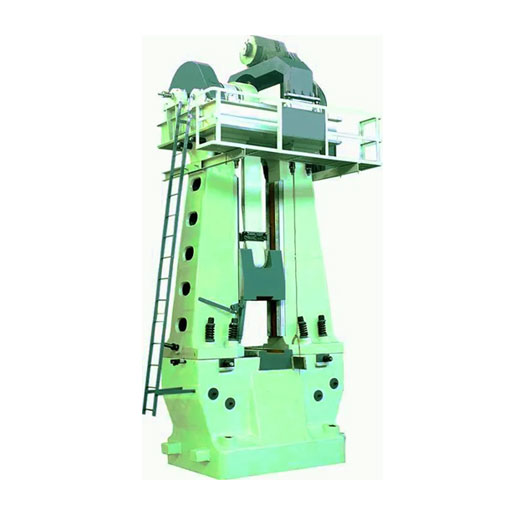

At Bharat Steel Industries, we are proud to offer our Friction Drop Hammer range, specifically designed to meet the rigorous demands of the forging industry. Our Friction Drop Hammers, available in a range starting from 300 to 1500 kgs, are engineered for durability, precision, and high performance.
We understand that every forging operation has unique requirements. Our Friction Drop Hammers can be customized to meet specific needs, ensuring that you get the right tool for your application. Furthermore, our dedicated team is always available to provide assistance, from installation and setup to maintenance of machine.
| Capacity of Hammers | Kgs | 300 | 500 | 750 | 1000 | 1250 | 1500 |
| Weight of tup | Kgs | 325 | 550 | 850 | 1150 | 1300 | 1550 |
| Space between Slides | MM | 360 | 432 | 495 | 542 | 575 | 620 |
| lnches | 14 | 17 | 20 | 21 | 23 | 25 | |
| Maximum Stroke | MM | 1450 | 1565 | 1630 | 1675 | 1700 | 1800 |
| lnches | 57" | 62" | 64" | 66" | 67" | 71" | |
| Max. Weight Top Tie | kgs | 100 | 155 | 225 | 280 | 330 | 460 |
| Tup Front to Back | MM | 330 | 400 | 430 | 490 | 520 | 550 |
| lnches | 13 | 16 | 17 | 19 | 21 | 22 | |
| Total Height of Machine | MM | 5000 | 5500 | 5590 | 6020 | 6300 | 6600 |
| FT. | 15'6" | 18' | 18'6" | 19'6" | 20'6" | 21'6" | |
| Max. Number of Blows Per Minute | Short Stroke | 95 | 90 | 82 | 75 | 66 | 66 |
| Full Stroke | 45 | 44 | 40 | 36 | 32 | 32 | |
| Max. Weight of Job | Kgs | 1 | 1.25 | 2 | 4 | 5.5 | 11 |
| Gross Weight (Approx.) | M.T | 10 | 17 | 25 | 32 | 35 | 47 |
| Electric Motor (1440 RPM) | HP | 20 | 30 | 40 | 50 | 60 | 75 |
| Motor Rating | 50 Cycles | 440 Volts | 3 Phase | Slipring Motor | 1440 RPM | - | - |
